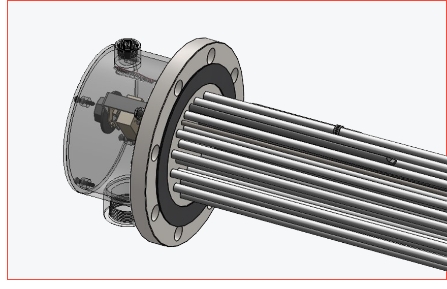

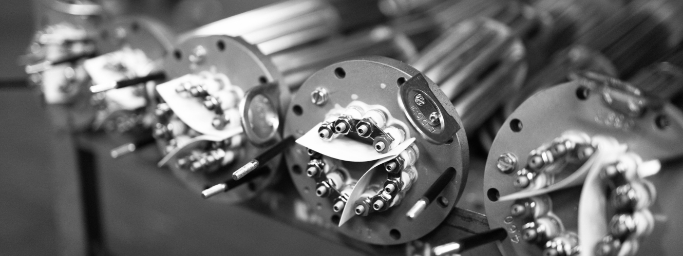

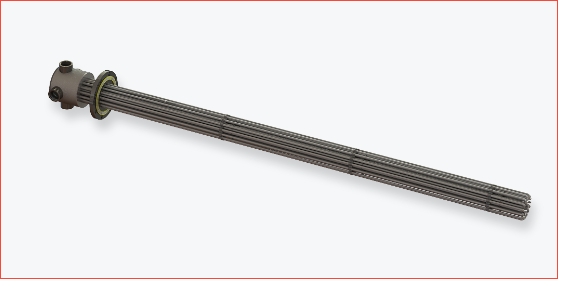

Flanged Immersion Heaters

Industrial Flanged Immersion Heaters

Warren manufactures Flanged Immersion Heaters utilizing standard ANSI flanges ranging from 2” to 24”, 150 PSIG to 1500 PSIG, and a wide variety of custom round and rectangular flanges to suit your application requirements.

A wide selection of watt densities, power ratings, and element sheath materials make flanged immersion heaters an excellent choice for many heating applications.

Flanged Immersion Heater Specifications
Watts: up to 800 Kilowatts
Volts / Phase: up to 600 Volts, Single or 3 Phase
Flange Size: Standard to 14” ANSI, consult factory for larger sizes
Pressure Rating: Standard ANSI to 150 PSIG, consult factory for other ratings
Immersion Length: up to 120” standard, consult factory for longer lengths

Applications:

Heating large tanks and vessels, industrial water heating, oil and petrochemical heating, wax heating (requires drywell), process heating in chemical industries, and more.

Give us the specs.

If you have more information, you can fill out our spec form, send it back to us, and one of our experts will be in touch.
